The mitey
package is a lightweight package designed originally as a companion to the analyses presented by Ainslie et al. 2025 on scabies transmission. However, these methods are more widely applicable than in the context of scabies, thus the motivation behind creating the mitey
package was twofold and also provides flexible, documented code for methods to estimate epidemiological quantities of interest.
Currently, mitey
includes methods to estimate a) the mean and standard deviation of the serial interval distribution using a maximum likelihood framework developed by Vink et al. 2014 and b) the time-varying reproduction number using the method developed by Walling and Lipsitch 2007.
Installation
# install.packages("devtools")
devtools::install_github("kylieainslie/mitey")
Installation time
system.time({
devtools::install_github("kylieainslie/mitey", force = TRUE)
})
#> Using GitHub PAT from the git credential store.
#> Downloading GitHub repo kylieainslie/mitey@HEAD
#>
#> ── R CMD build ─────────────────────────────────────────────────────────────────
#> * checking for file ‘/private/var/folders/jt/rd3vkwv92yq6x0kb9k4m91zm0000gn/T/RtmpBvnxT9/remotesbb5775f6e2d6/kylieainslie-mitey-316a611/DESCRIPTION’ ... OK
#> * preparing ‘mitey’:
#> * checking DESCRIPTION meta-information ... OK
#> * checking for LF line-endings in source and make files and shell scripts
#> * checking for empty or unneeded directories
#> * building ‘mitey_0.1.0.tar.gz’
#> Installing package into '/private/var/folders/jt/rd3vkwv92yq6x0kb9k4m91zm0000gn/T/RtmpSwtO0w/temp_libpathb53b5d4b7e36'
#> (as 'lib' is unspecified)
#> user system elapsed
#> 2.898 0.529 6.828
Main Functions
Function | Description |
---|---|
si_estim() |
Estimates the mean and standard deviation of the serial interval distribution |
plot_si_fit() |
Plots the fitted serial interval distribution |
wallinga_lipsitch() |
Estimates the time-varying reproduction number using the Wallinga & Lipsitch method |
generate_synthetic_epidemic() |
Generates a synthetic epidemic curve with specified parameters for testing and simulation |
Example Usage
library(mitey)
#-----------------
# Serial Interval Estimation
#-----------------
icc_intervals <- c(rep(6,4),rep(7,8),rep(8,14),rep(9,31),rep(10,29),rep(11,42),rep(12,25),rep(13,16),rep(14,16), rep(15,10),rep(16,4),rep(17,2),rep(18,2))
# Estimate serial interval
si_results <- si_estim(icc_intervals)
si_results
#> $mean
#> [1] 10.91892
#>
#> $sd
#> [1] 2.036239
#>
#> $wts
#> [1] 3.625090e-02 9.146057e-01 3.012069e-16 4.913656e-02 7.797502e-22
#> [6] 6.801913e-06 6.863119e-28

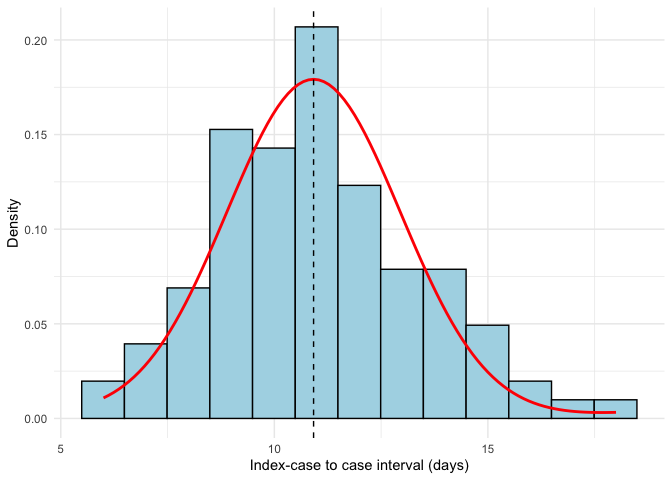

# Plot fitted serial interval distribution
plot_si_fit(
dat = icc_intervals,
mean = si_results$mean[1],
sd = si_results$sd[1],
weights = c(si_results$wts[1],
si_results$wts[2] + si_results$wts[3],
si_results$wts[4] + si_results$wts[5],
si_results$wts[6] + si_results$wts[7]),
dist = "normal"
)
#-----------------
# Time-varying Reproduction Number Estimation
#-----------------
# Generate a synthetic epidemic using the generate_synthetic_epidemic function
set.seed(123)
true_r <- c(rep(2.5, 50), seq(2.5, 0.8, length.out = 30), rep(0.8, 100))
# Generate synthetic epidemic data
synthetic_data <- generate_synthetic_epidemic(
true_r = true_r, # Time-varying reproduction number
si_mean = 5.2, # Mean serial interval (days)
si_sd = 1.72, # SD of serial interval
si_dist = "gamma", # Distribution type
initial_cases = 10 # Initial number of cases
)
incidence <- synthetic_data$incidence
dates <- synthetic_data$date

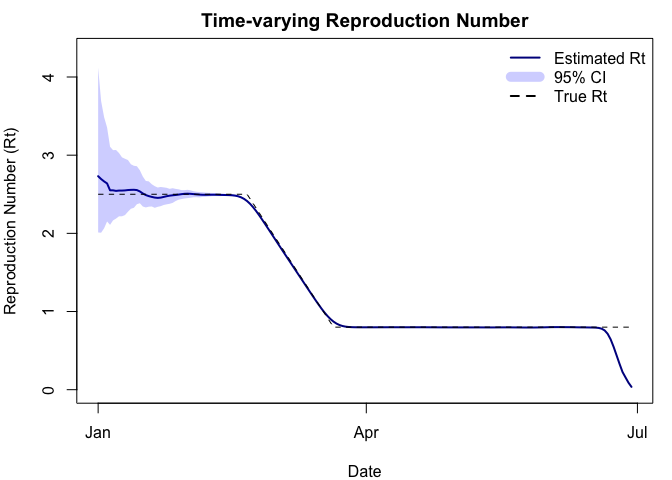

# Estimate time-varying reproduction number
results <- wallinga_lipsitch(
incidence = incidence,
dates = dates,
si_mean = 5.2, # mean serial interval in days
si_sd = 1.72, # serial interval SD
si_dist = "gamma", # serial interval distribution
smoothing = 7, # 7-day smoothing window
bootstrap = TRUE, # calculate bootstrap confidence intervals
n_bootstrap = 100, # number of bootstrap samples
conf_level = 0.95 # 95% confidence intervals
)
head(results)
#> date incidence R R_corrected R_lower R_upper R_corrected_lower
#> 1 2023-01-01 10 2.731039 2.731039 2.011146 4.120939 2.011146
#> 2 2023-01-02 0 2.694590 2.694590 2.008012 3.692239 2.008012
#> 3 2023-01-03 1 2.664286 2.664286 2.064334 3.486878 2.064334
#> 4 2023-01-04 3 2.638675 2.638675 2.151772 3.354107 2.151772
#> 5 2023-01-05 9 2.550425 2.550425 2.108557 3.108038 2.108557
#> 6 2023-01-06 11 2.550200 2.550200 2.165532 3.064228 2.165532
#> R_corrected_upper
#> 1 4.120939
#> 2 3.692239
#> 3 3.486878
#> 4 3.354107
#> 5 3.108038
#> 6 3.064228
Expected Run Times
Expected run times for the examples provided above are shown in the table below.
Click to expand run time information
Example | Data Size | Run Time | Details |
---|---|---|---|
Serial Interval Estimation | |||
si_estim() |
203 ICC intervals | < 1 second | EM algorithm on example outbreak data |
plot_si_fit() |
Same data + plotting | < 1 second | Visualization of fitted distribution |
Synthetic Data Generation | |||
generate_synthetic_epidemic() |
180 days | < 1 second | Creates epidemic curve with known Rt |
Reproduction Number Estimation | |||
wallinga_lipsitch() (point estimates) |
180 days, no bootstrap | 1-2 seconds | Fast point estimates only |
wallinga_lipsitch() (with bootstrap) |
180 days, 100 bootstrap samples | 2-5 minutes | Including 95% confidence intervals |
Complete Example Workflow | |||
All example code blocks | Full workflow | 3-6 minutes | Serial interval + Rt estimation + plots |
bootstrap = FALSE
for quick demonstrations, or reduce n_bootstrap
to 10-20 for faster approximate confidence intervals.
Vignettes
A quick start guide showing examples of how to estimate the serial interval and time-varying reproduction number can be found here.
A script that reproduces the results from Ainslie et al. 2025 can be found here.
Validation of the method used to estimate the mean and standard deviation of the serial interval proposed by Vink et al. 2014 can be found here.
Validation of the method used to estimate the time-varying reproduction number proposed by Wallinga and Lipsitch 2007 can be found here.
Data
Several data files are stored in the repo so that the results presented in Ainslie et al. 2025 are reproducible. Data files are stored in inst/extdata/data/
. Below is a brief description of the different files.
-
si_data.rds
- Description: Data on date of symptom onset for scabies outbreaks described by Kaburi et al., Akunzirwe et al., Tjon-Kon-Fat et al., and Ariza et al. For all outbreaks except Kaburi et al. the raw data was not available, thus the date of symptom onset data had to be reconstructed using the epidemic curve provided in the manuscript. The original data from Kaburi et al. is also available in the
data
directory (Kaburi_et_al_data_scabies.xlsx
). - Source:
- Description: Data on date of symptom onset for scabies outbreaks described by Kaburi et al., Akunzirwe et al., Tjon-Kon-Fat et al., and Ariza et al. For all outbreaks except Kaburi et al. the raw data was not available, thus the date of symptom onset data had to be reconstructed using the epidemic curve provided in the manuscript. The original data from Kaburi et al. is also available in the
-
scabies_data_yearly.xlsx
- Description: Annual scabies incidence per 1000 people in the Netherlands from 2011-2023.
- Source: Nivel
-
scabies_data_consultation_weekly.xslx
- Description: Weekly numbers of persons consulting for scabies (per 100,000 people) from 2011 to 2023 in the Neltherlands as diagnosed by general practitioners (GPs). Note: Individuals in institutions (e.g., care homes, prisons) usually have their own health care provider and are generally not taken into account in GP registrations.
- Source: Nivel
License
This package is distributed under the European Union Public License (EUPL) v1.2. See LICENSE file for details.
Citation
If you use this package, please cite both the manuscript and the software:
Manuscript
Ainslie, K.E.C., M. Hooiveld, J. Wallinga. (2025). Estimation of the epidemiological characteristics of scabies. Available at SSRN. https://papers.ssrn.com/sol3/papers.cfm?abstract_id=5184990
Software
citation("mitey")
#> To cite package 'mitey' in publications use:
#>
#> Ainslie K (2025). _mitey: Toolkit to Estimate Infectious Disease
#> Dynamics Parameters_. R package version 0.1.0, commit
#> 316a6114e6689f969c75b6f32844762559233ed2,
#> <https://github.com/kylieainslie/mitey>.
#>
#> A BibTeX entry for LaTeX users is
#>
#> @Manual{,
#> title = {mitey: Toolkit to Estimate Infectious Disease Dynamics Parameters},
#> author = {Kylie Ainslie},
#> year = {2025},
#> note = {R package version 0.1.0, commit 316a6114e6689f969c75b6f32844762559233ed2},
#> url = {https://github.com/kylieainslie/mitey},
#> }
Other
For reference, here are the original methodological papers:
- Vink et al. (2014). Serial intervals of respiratory infectious diseases: A systematic review and analysis. American Journal of Epidemiology, 180(9), 865-875.
- Wallinga, J., & Lipsitch, M. (2007). How generation intervals shape the relationship between growth rates and reproductive numbers. Proceedings of the Royal Society B: Biological Sciences, 274(1609), 599-604.
System Requirements
- R Version: R >= 4.0.0 (developed and tested with R 4.5.0)
-
Operating Systems: Tested on
- macOS (latest via GitHub Actions)
- Windows Server (latest via GitHub Actions)
- Ubuntu Linux 22.04+ (with R release and R-devel)
Dependencies
Click to expand dependency information
Category | Package | Purpose | Required |
---|---|---|---|
Core Dependencies | |||
fdrtool |
Half-normal distribution functions (Vink method) | ✅ Yes | |
stats |
Statistical distribution functions | ✅ Yes | |
brms |
Bayesian meta-analysis | ✅ Yes | |
Data Manipulation | |||
dplyr |
Data manipulation and grouping | 📦 Suggested | |
tidyr |
Data reshaping | 📦 Suggested | |
purrr |
Functional programming tools | 📦 Suggested | |
Visualization | |||
ggplot2 |
Statistical graphics | 📦 Suggested | |
cowplot |
Combining plots | 📦 Suggested | |
ggridges |
Ridge plots for meta-analysis | 📦 Suggested | |
viridis |
Color palettes | 📦 Suggested | |
Time Series & Data Handling | |||
zoo |
Moving averages and smoothing | 📦 Suggested | |
lubridate |
Date manipulation | 📦 Suggested | |
ISOweek |
ISO week handling | 📦 Suggested | |
openxlsx |
Excel file reading | 📦 Suggested | |
Method Validation | |||
EpiEstim |
Reproduction number estimation comparison | 🔬 Development | |
EpiLPS |
Alternative reproduction number methods | 🔬 Development | |
outbreaks |
Epidemiological datasets for validation | 🔬 Development | |
Bayesian Analysis | |||
tidybayes |
Bayesian posterior visualization | 📊 Vignettes | |
Documentation & Tables | |||
gt |
Publication-quality tables | 📊 Vignettes | |
flextable |
Flexible table formatting | 📊 Vignettes | |
broom |
Model output tidying | 📊 Vignettes |
Contributing
Contributions to mitey
are welcome! Please feel free to submit a pull request or open an issue to discuss potential improvements or report bugs.
